AEM's easy-to-install air intake system gives you more power and acceleration by replacing the restrictive factory air filter and air intake tubing while retaining the stock air box. The intake tube has a gunmetal gray powder-coat finish.
The AEM 22-687C Performance Air Intake System is a free-flowing, mandrel-bent aluminum tube air induction system designed to replace the restrictive factory air filter and air intake tubing while retaining the factory air box on some Ford Mustang GT models. The air intake system comes with a replacement AEM high-flow air filter and a free-flowing aluminum intake tube that easily connects to your vehicle's factory air box and engine throttle body to dramatically increase air flow into your engine. With more air flowing through the custom-tuned intake tube you experience more horsepower and acceleration throughout the engine's RPM range. The intake tube is finished with an attractive and durable gunmetal gray powder-coating that provides a clean, high-performance look under the hood. The AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before servicing is needed (depending on driving conditions). The air intake is designed for easy installation and simply requires one screwdriver to do the job.
- An inexpensive and easy horsepower upgrade
- Designed to improve throttle response and engine sound
- Low restriction aluminum intake tube
- Simplistic installation requires little mechanical experience
- Lasts up to 100,000 miles before service is required (depending on driving conditions)
- Replaces stock air filter and intake tube while retaining the factory air box
- Washable and reusable lifetime air filter
Application Summary:
| Year |
Make/Model |
| 2015-2017 |
Ford Mustang |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
2.281 in (58 mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Width |
10.375 in. (264mm) |
| Air Filter Outlet Shape |
Not Flanged |
| Air Filter Outlet Width |
10.375 in (264 mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
AEM-22-687C |
| ASIN |
B0114YNXYK |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB EO Number |
D-670-23 |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
3 |
| Clamp Style |
Regular |
| Clamps Included |
3 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Not Applicable |
| Coupler Color/Finish |
Not Applicable |
| Couplers Included |
None |
| Emission Code |
Legal US |

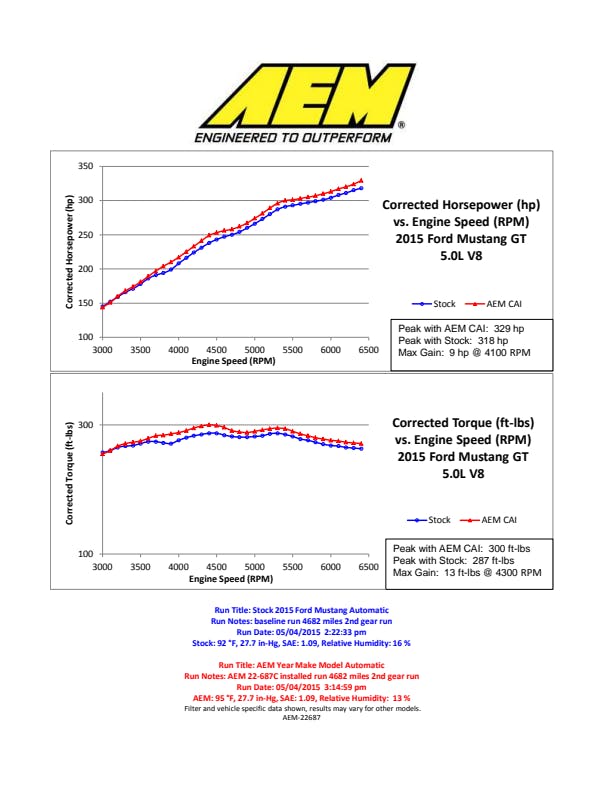

| Estimated Horse Power Gain |
9 HP @ 4100 RPM |
| Estimated Horsepower Gain |
9 HP @ 4100 RPM |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
9 HP |
| Intake Pipe Color |
Gunmetal Gray |
| Intake Pipe Color / Finish |
Gunmetal Gray |
| Intake Pipe Inlet Length |
22 in (559 mm) |
| Intake Pipe Inlet Shape |
Round |
| Intake Pipe Inlet Width |
3.5 in (89 mm) |
| Intake Pipe Material |
Aluminum |
| Intake Pipe Outlet Length |
22 in (559 mm) |
| Intake Pipe Outlet Shape |
Round |
| Intake Pipe Outlet Width |
3.5 in (89 mm) |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
6.300 lbs. (2.9 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
No |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
8.500 in. (216mm) |
| Product Box Length |
18.250 in. (464mm) |
| Product Box Width |
14.500 in. (368mm) |
| Product Style |
AEM Cold Air Intake System |
| Replacement Filter |
28-50029 |
| RPM |
4100 |
| SDR Required Flag |
N |
| Standard Pack |
1 |
| Street Legal In All US States |
Not legal for sale or use in California on any pollution controlled motor vehicle.
NOTE: Some specific models and years may be legal in CA. Check the CARB status on your parts at knfilters.com. |
| System Type |
Cold Air Induction |
| TUV Approved (Europe) |
No |
| Warranty |
Limited Lifetime |
| Weight |
6.3 lb (2.9 kg) |
| GTIN |
00024844360267 |
