AEM's Performance Cold Air Intake Systems are designed, tuned and dyno-tested to give your engine more power and acceleration by replacing the restrictive factory air filter, air intake tubing and air box assembly.
The AEM Performance Cold Air Intake System produces horsepower and torque gains by replacing your vehicle's restrictive factory air filter and air intake housing. This air intake system was designed, tuned and dyno-tested to fit specific models. Air enters the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The air filter is located in the original air box space and is protected by a heat shield which is designed to reduce intake air temperature and increase horsepower. The air intake tube is constructed from mandrel-bent aluminum featuring a durable gunmetal gray powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the mass airflow sensor and breather tube. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools,
- Increased horsepower
- Tuned and dyno-tested to improve acceleration and engine sound
- Low restriction aluminum tubing
- Easy to install using commonly available tools
- Air filter lasts up to 100,000 miles before cleaning is required (depending on driving conditions)
- Washable and reusable oil-free filter media
Application Summary:
| Year |
Make/Model |
| 2014-2018 |
Mazda 3 |
| 2014-2021 |
Mazda 6 |
| 2015-2017 |
Mazda CX-5 |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
7 in (178 mm) |
| Air Filter Material |
Non-woven Synthetic |
| Air Filter Oulet Length |
1.500 in. (38mm) |
| Air Filter Oulet Width |
3.250 in. (83mm) |
| Air Filter Outlet Length |
1.5 in (38 mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
3.25 in (83 mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
AEM-21-779C |
| ASIN |
B01CXQ25RE |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| California Restricted |
Not legal for sale or use in California |
| CARB EO Number |
D-670-24 |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
3 |
| Clamp Style |
Regular |
| Clamps Included |
3 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Black |
| Coupler Color/Finish |
Black |
| Couplers Included |
1 |
| Emission Code |
Legal US |

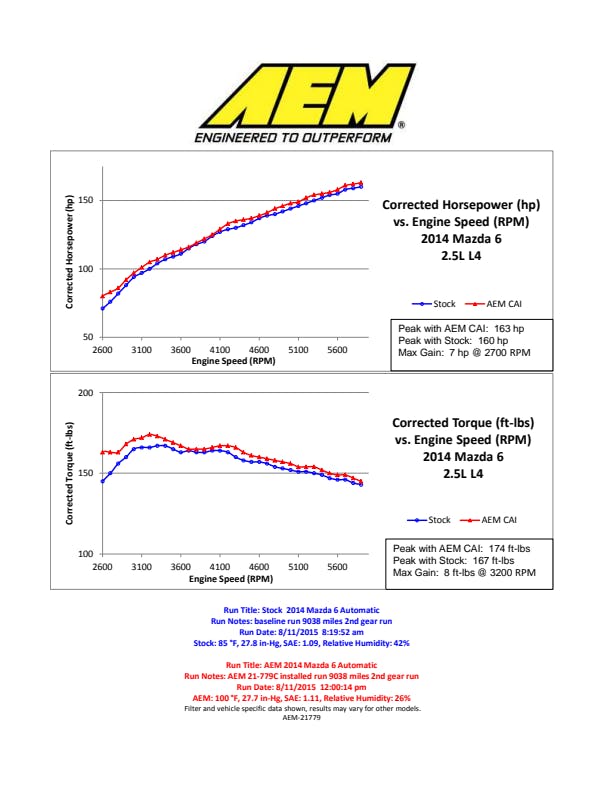

| Estimated Horse Power Gain |
7 HP @ 2700 RPM |
| Estimated Horsepower Gain |
7 HP @ 2700 RPM |
| Filter Color |
Red |
| Filter Material |
Non-woven Synthetic |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
7 HP |
| Intake Pipe Color |
Gunmetal Gray |
| Intake Pipe Color / Finish |
Gunmetal Gray |
| Intake Pipe Inlet Length |
8 in (203 mm) |
| Intake Pipe Inlet Shape |
Round |
| Intake Pipe Inlet Width |
3.25 in (83 mm) |
| Intake Pipe Material |
Aluminum |
| Intake Pipe Outlet Length |
8 in (203 mm) |
| Intake Pipe Outlet Shape |
Round |
| Intake Pipe Outlet Width |
3.25 in (83 mm) |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
8.700 lbs. (3.9 kg) |
| Life Cycle Status Code |
Available to Order |
| Mass Air Flow Sensor Adapter Included |
Yes |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
No, No Filter Oil Required |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
12.250 in. (311mm) |
| Product Box Length |
20.250 in. (514mm) |
| Product Box Width |
12.250 in. (311mm) |
| Product Style |
AEM Cold Air Intake System |
| Replacement Filter |
21-2113DK |
| RPM |
2700 |
| SDR Required Flag |
N |
| Standard Pack |
1 |
| Street Legal In All US States |
Not legal for sale or use in California on any pollution controlled motor vehicle. NOTE: Some specific models and years may be legal in CA. Check the CARB status on your parts at knfilters.com. |
| System Type |
Cold Air Induction |
| TUV Approved (Europe) |
No |
| Warranty |
Limited Lifetime |
| Weight |
8.7 lb (3.9 kg) |
| GTIN |
00024844361714 |
